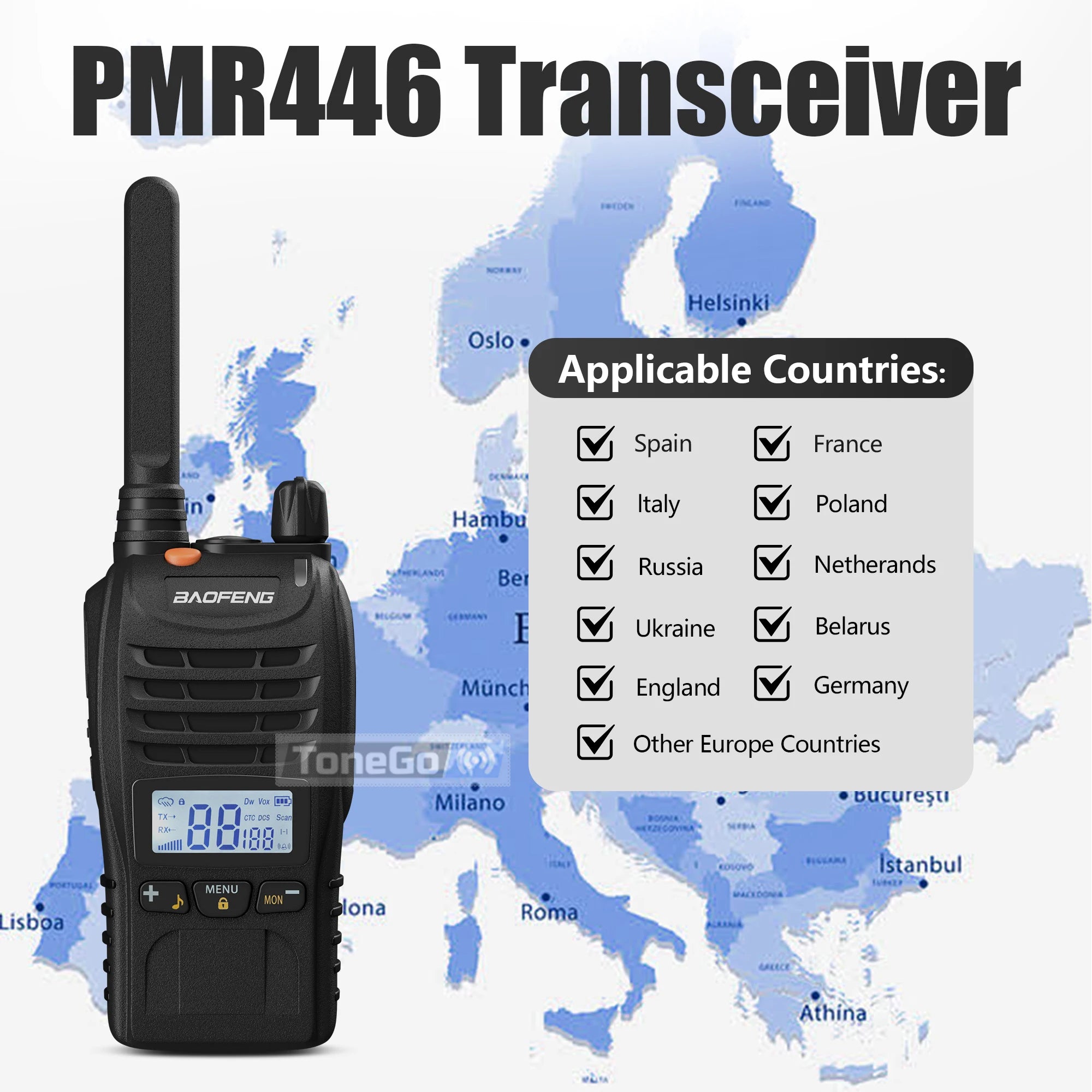

PMR446 Rransceiver
Applicable Countries:Spain,France,Italy.Poland.Russia,Netherlands,Ukraine,Belarus,
England,Gemany and Other European Countries.
Applicable for European countries

PMR446 frequencies list
The sixteen PMR446 frequencies (channels) are spaced at 12.5KHz (12,500 Hz) between 446.0MHz and 446.2MHz (446,000,000 and 446,200,000 Hz). The following table shows each of the channels and their corresponding frequencies.

Channel1：446.00625MHz

Channel2：446.01875MHz

Channel3：446.03125MHz

Channel4：446.04375MHz

Channel5：446.05625MHz

Channel6：446.06875MHz

Channel7：446.08125MHz

Channel8：446.09375MHz

Channel9：446.10625MHz

Channel10：446.11875MHz

Channel11：446.13125MHz

Channel12：446.14375MHz

Channel13：446.15625MHz

Channel14：446.16875MHz

Channel15：446.18125MHz

Channel16：446.19375MHz

Notice: This walkie-talkie is the PMR version, only suitable for European countries.
▶PMR 446MHz : For European Countries such as Russia, Spain,France,Italy,Poland Netherlands,Ukraine,Belarus,England,Germany etc.
Main Characteristics

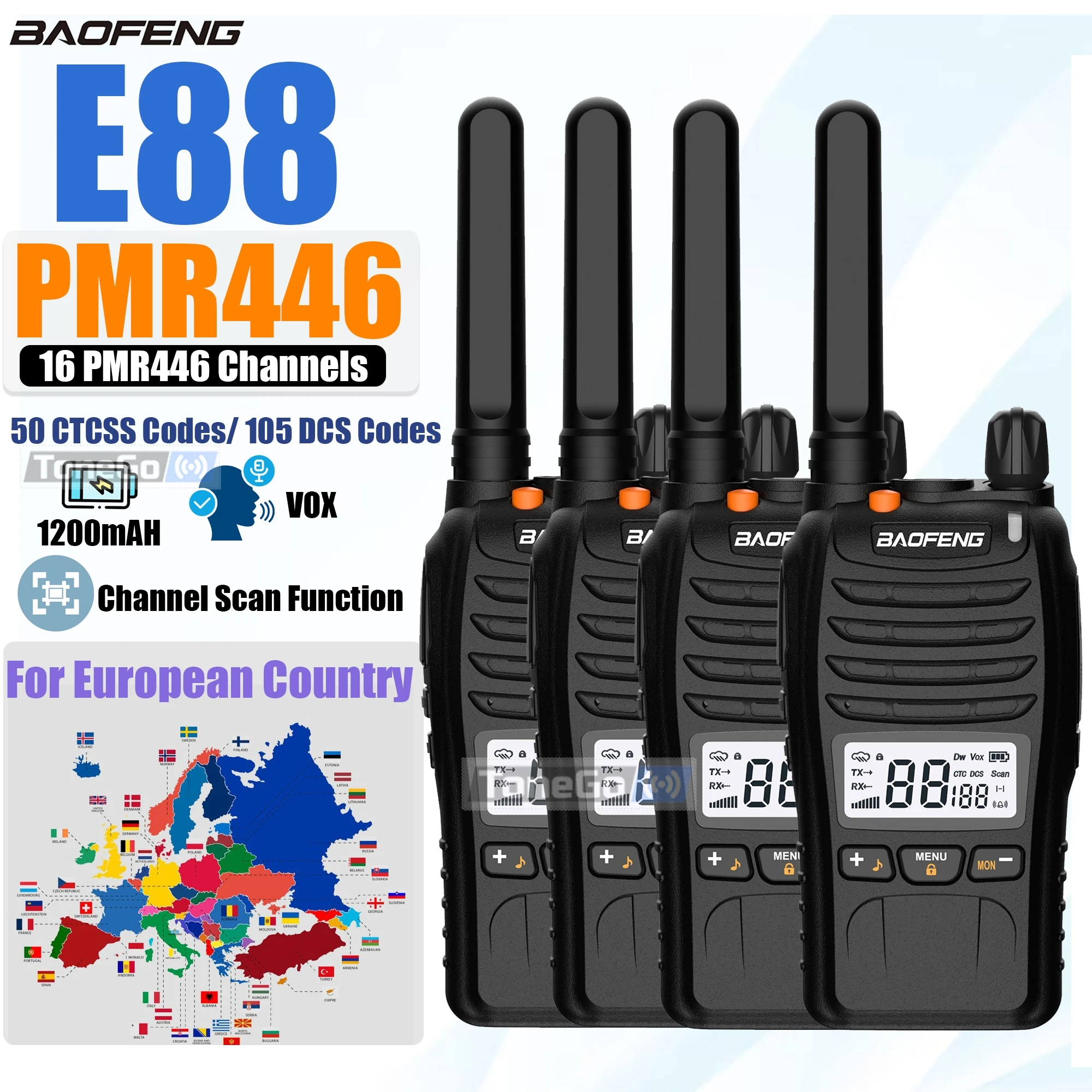

·16 PMR446 Channels
·Output power:≤0.5W

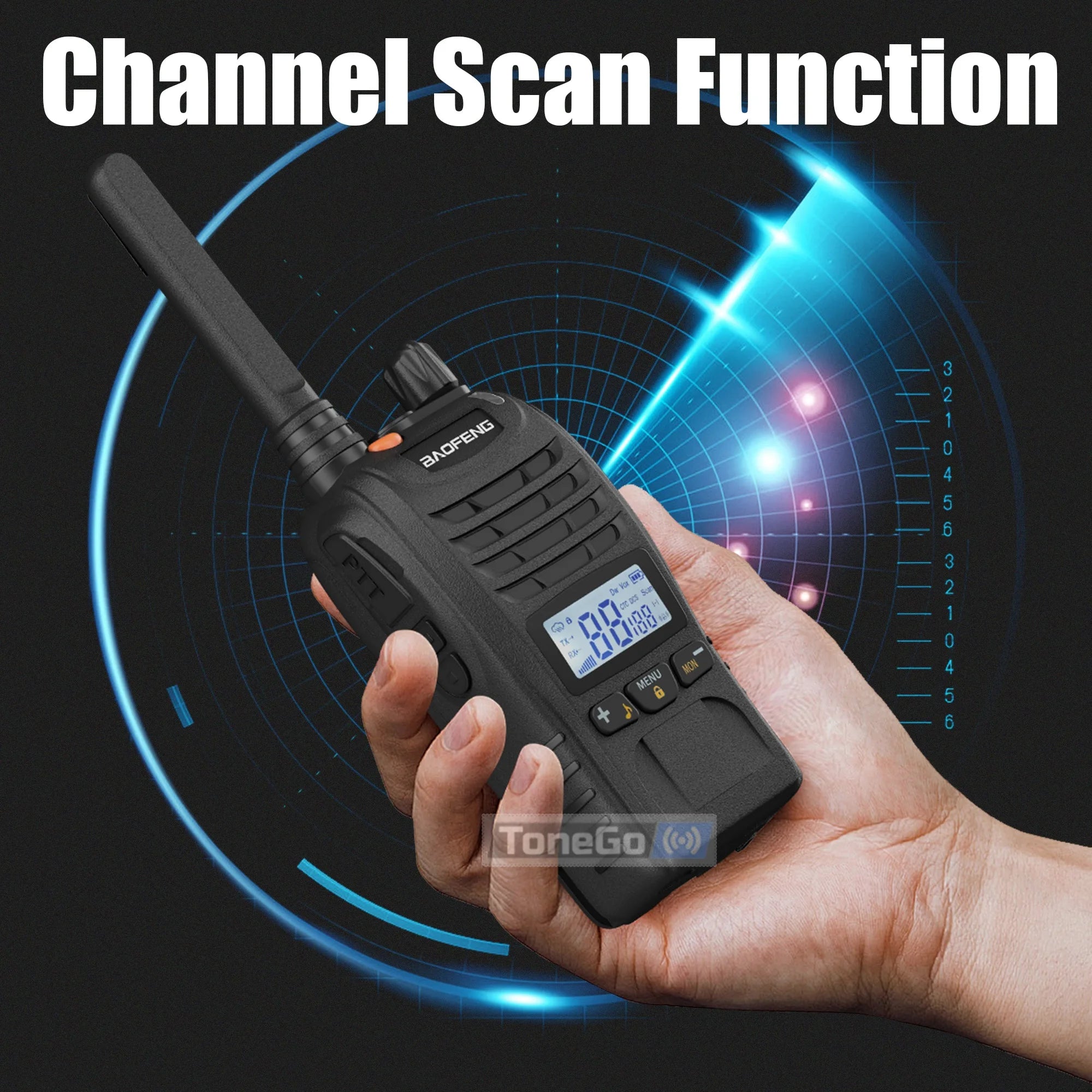

·Channel Scan Function

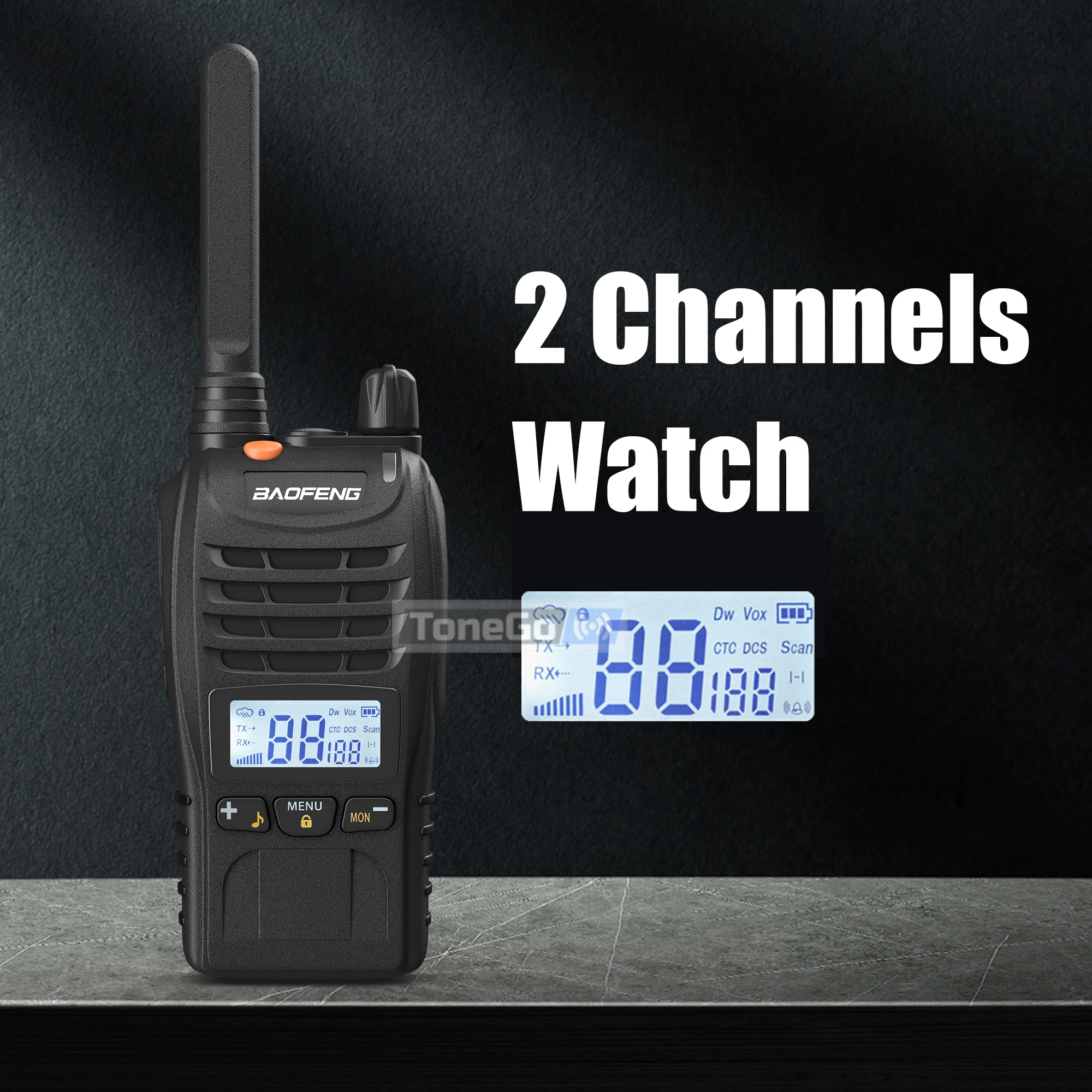

·2 Channels Watch
·TOT (Time out timer)

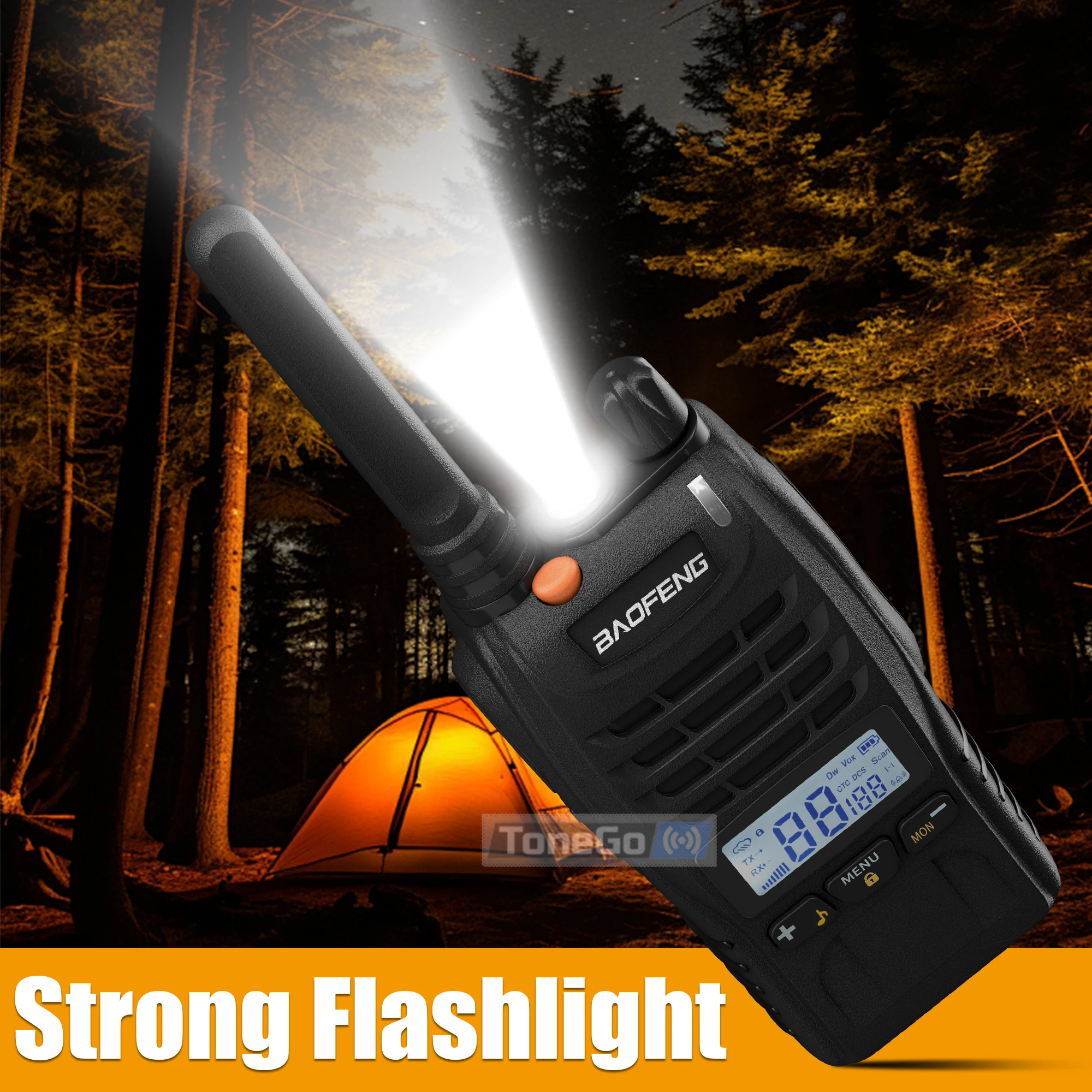

·LED Flashlight

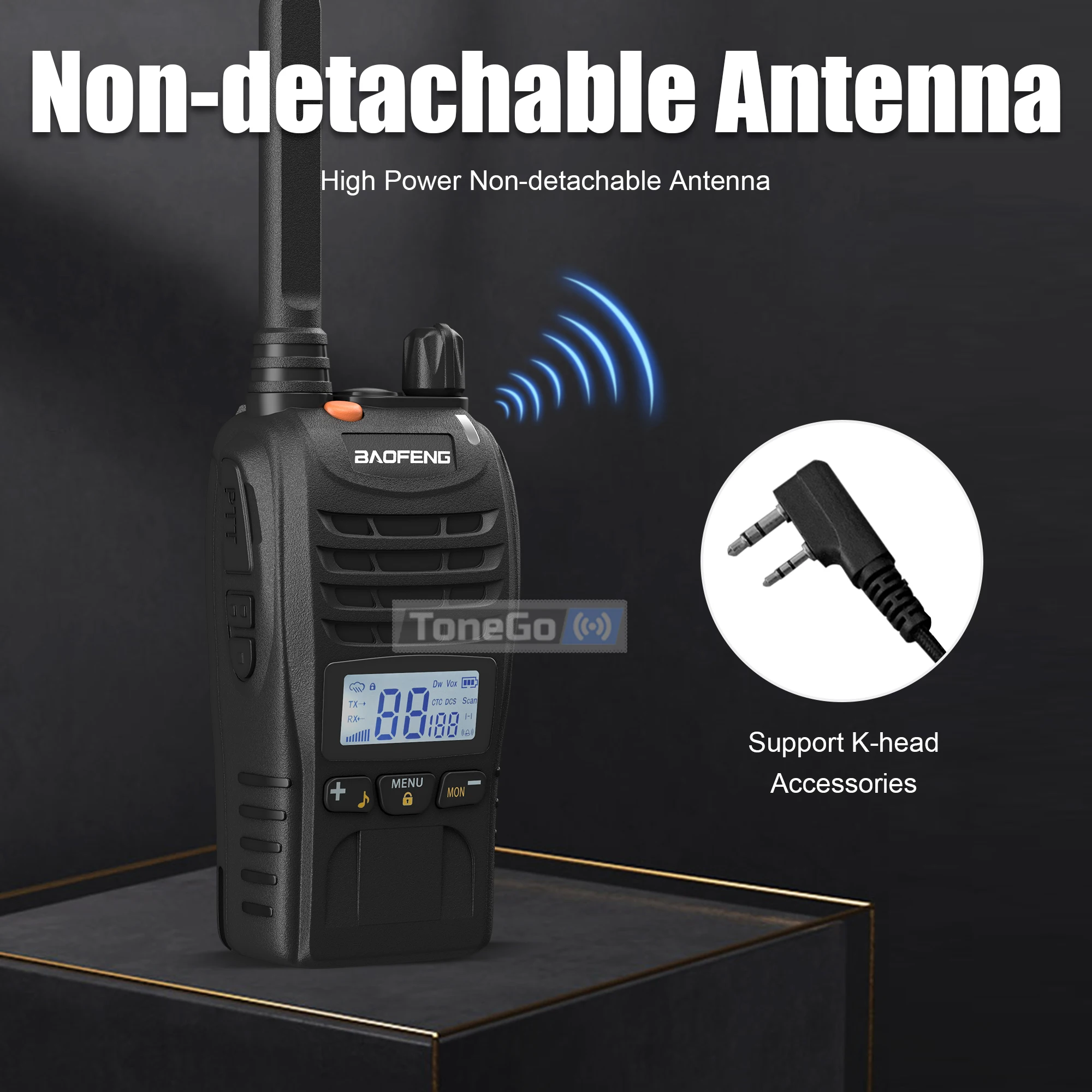

· 2pin Kenwood headset jack

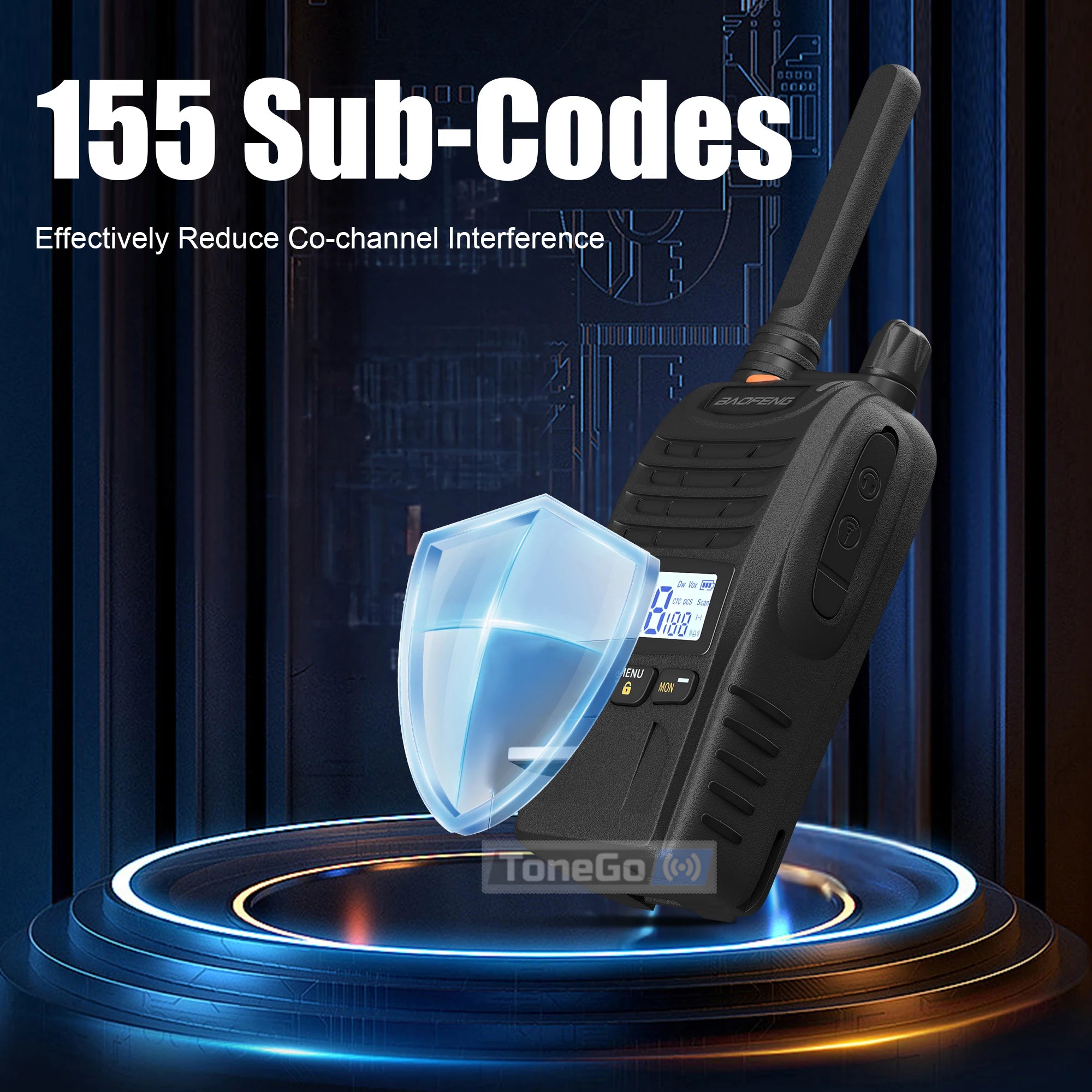

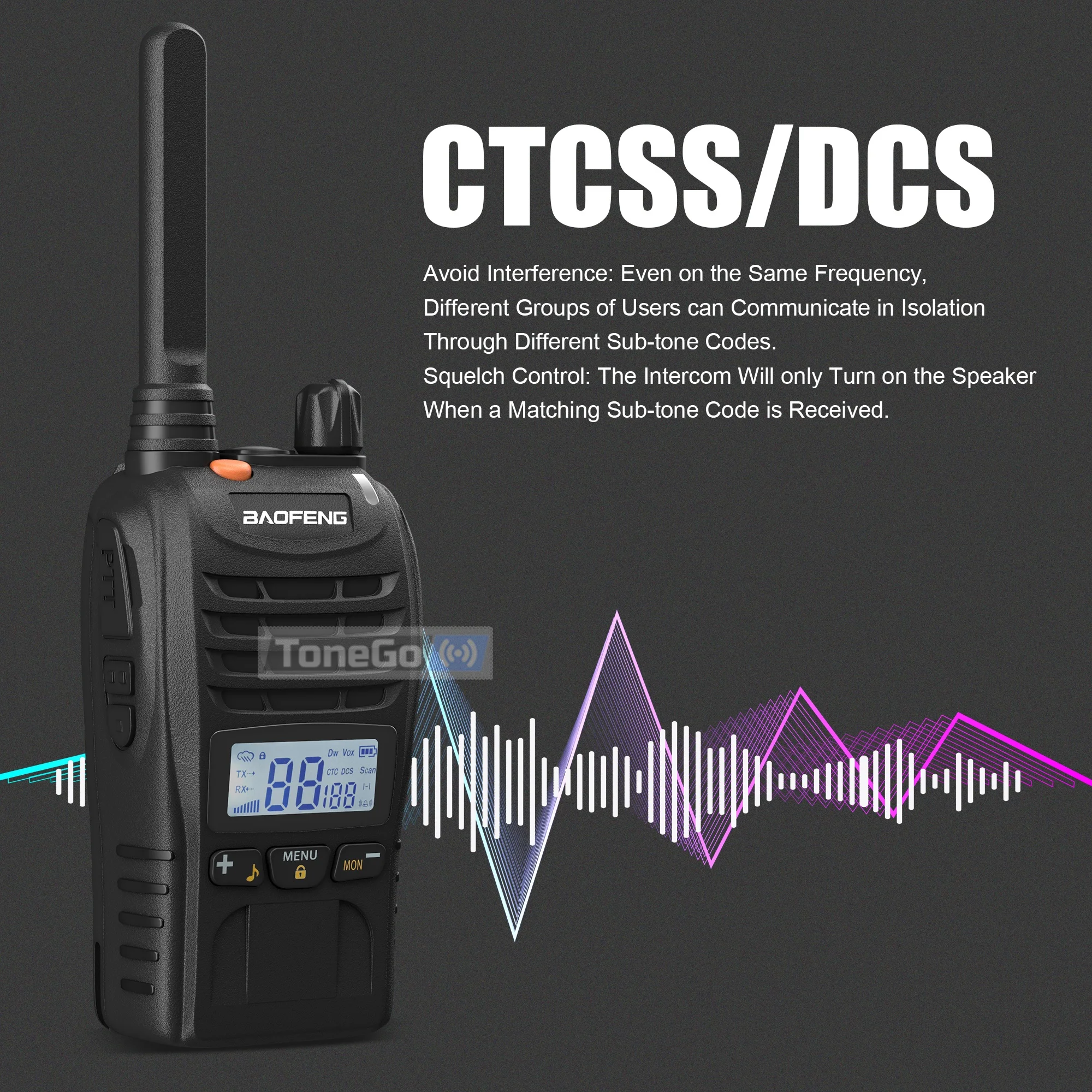

.155 Sub-codes (50 CTCSS Codes & 105 DCS codes)
·Battery save
·Battery Level Meter
·Battery Life: up to 18 hours (under typical use conditions)

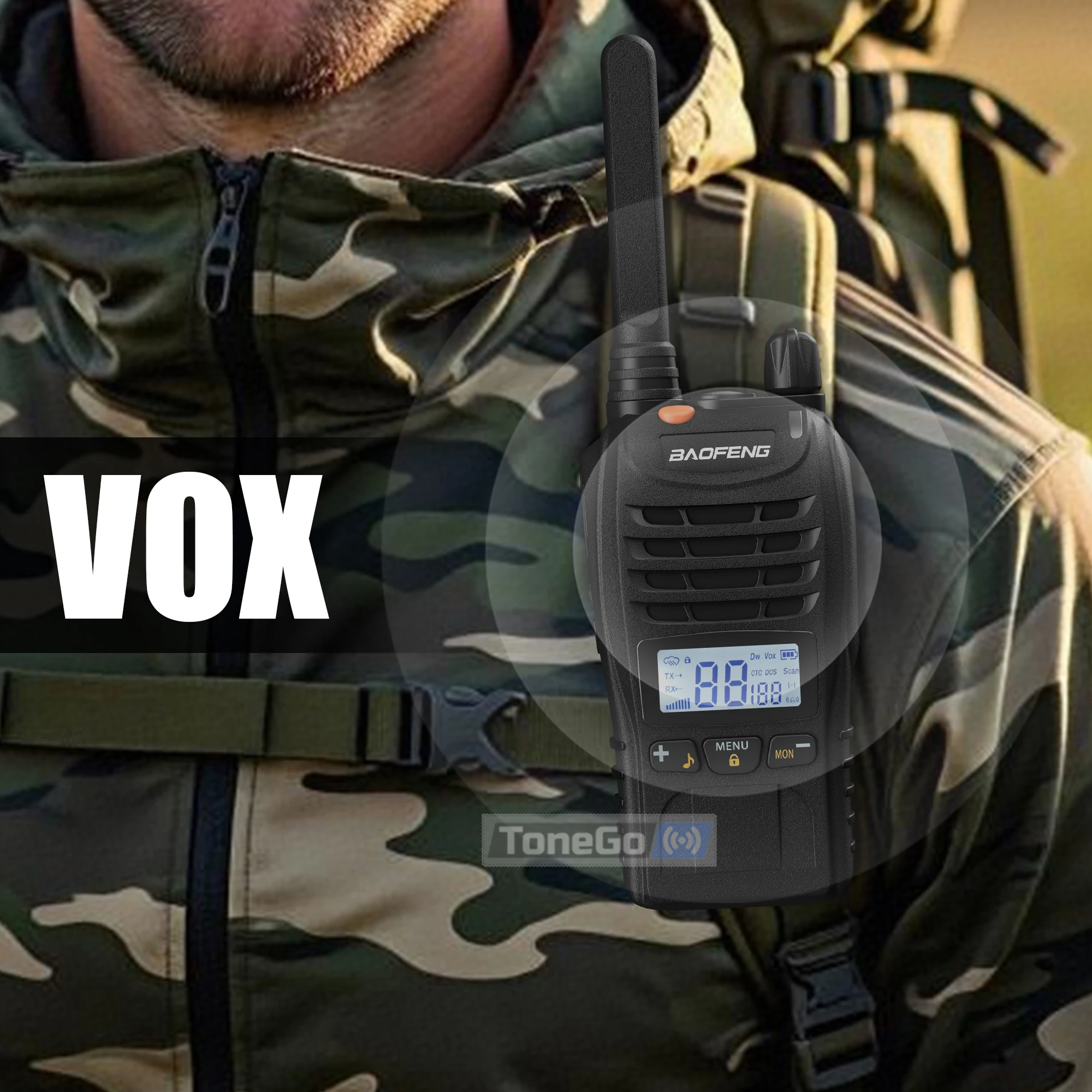

·VOX
·Channel Monitor
·Call Alert

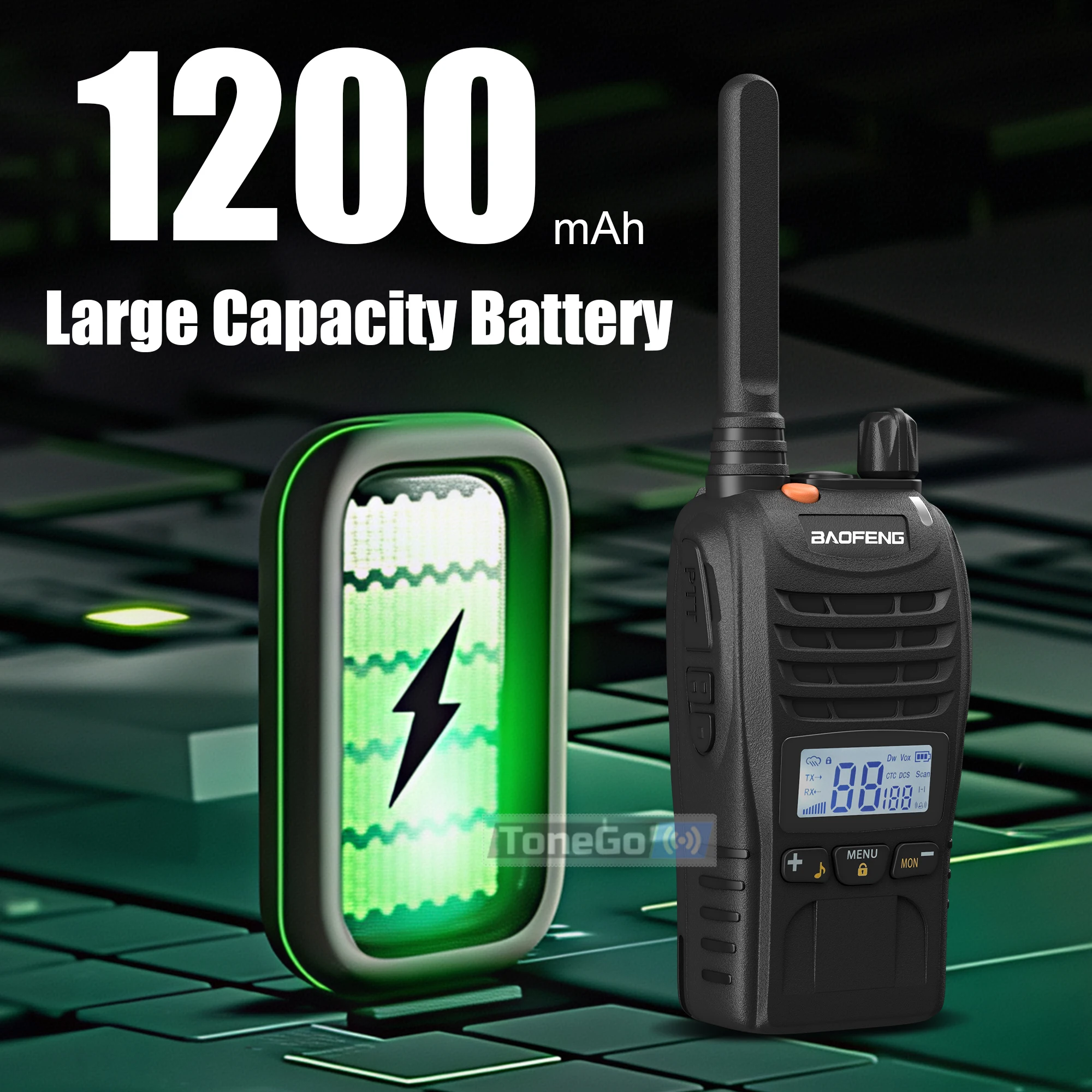

·Li-ion 1200mAh battery pack

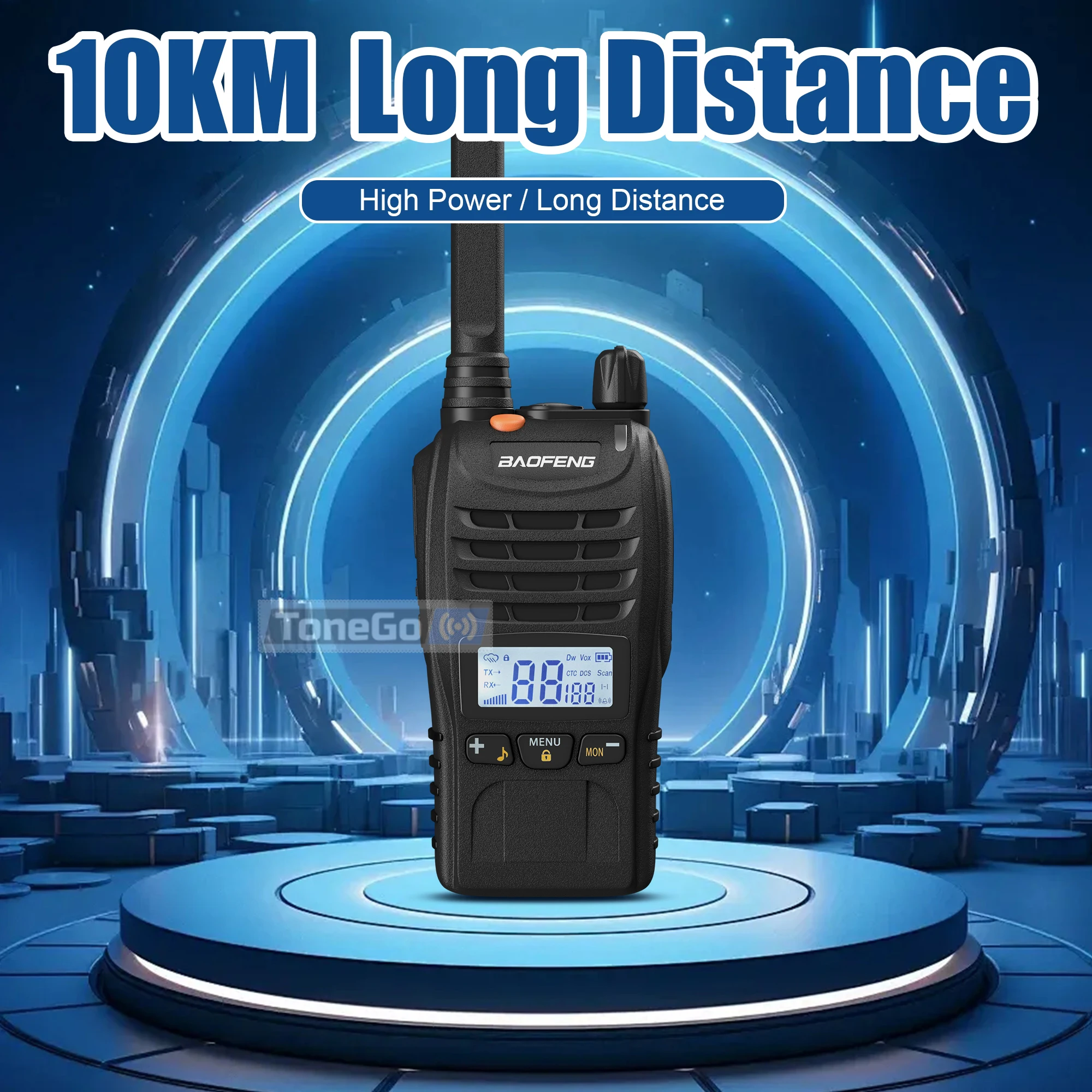

·Up to 10 km range*
Note: *Range may vary depending on environmental and/or topographical conditions.
The maximum range depends on terrain condition and is obtained during use in an open space.
The only limitation to maximum possible range are environmental factors such as blockage caused by trees, buildings, or
other obstructions. Inside a car or a metallic construction, the range can be reduced. Normally the coverage in the city, with
buidings or other obstructions s about 1 or 2 Km. ln open space but with obstructions like trees, leafs or houses the
maximum possible range is about 4-6 Km. In open space, without obstructions and in sight, like for example in mountain, the
coverage can be 10 Km.
ADDITIONAL FUNCTIONS OPERATIONS
Power on/off and volume adjustment
Rotate the Power/Volume knob clockwise to turn the radio on. Rotate the control clockwise /counter-clockwise to adjust the
volume level as you prefer. To turn the radio off, rotate the control counter-clockwise till hearing a mechanical "click”
Choosing a Channel
Your radio has 16 channels and 155 Sub-Codes you can use to talk to others. ln order to speak to someone, both your radios
must be set to the same channel and Privacy code.
If the "+" or "MON" button is locked, please press and hold the "MENU" button for 2 seconds to unlock. Press the "+" or "MON"
buttons to select one of the 16 PMR channels.
Monitor Mode Feature
Your radio allows you to listen for weak signals on the current channel at the press of a key. To turn ON Monitor mode: Press
and hold "MON" button for 2 seconds until two beeps sound. The receiver circuit stays open, and both noise and weak signals
can be heard. The RX(icon blinks. To turn OFF Monitor mode: Press and hold hbutton for 2 seconds to return to
"Normal" mode; two beeps sound and the RX icon stops blinking and disappears.
Battery recharge
The radio is equipped for using a 3.7V Li-ion rechargeable battery pack which can be recharged connecting the socket of the AC/DC wall adaptor to a mains power socket and inserting the jack of the wall adaptor into the desktop charger plug.
It takes 4-5 hours to fully recharge the radio. For maximum battery life, we recommend charging the battery pack when the radio is off and the battery pack is fully discharged.

Technical Specifications
General Part
Frequency Range:446.00625-446.19375MHz(PMR446)
Channels:16 PMR446
Working temperature:-10℃ to +50℃
Operation Voltage:DC 3.7V±10%
Operation Mode:Simplex
Dimensions:168mmx57mmx34.5mm (without Antenna)
Weight:about 150g (Battery pack included)
Antenna Impedance:50ohm
Category:B

Transmitter Part
Frequency Stability:±2.5ppm
RF Output Power:≤500mWERP
Max frequency deviation:≤2.5KHz
Audio distortion:≤3%
Adjacent Channel Power:60dB

Receiver Part
Audio distortion:≤3%
Audio response:300 HZ-3KHZ

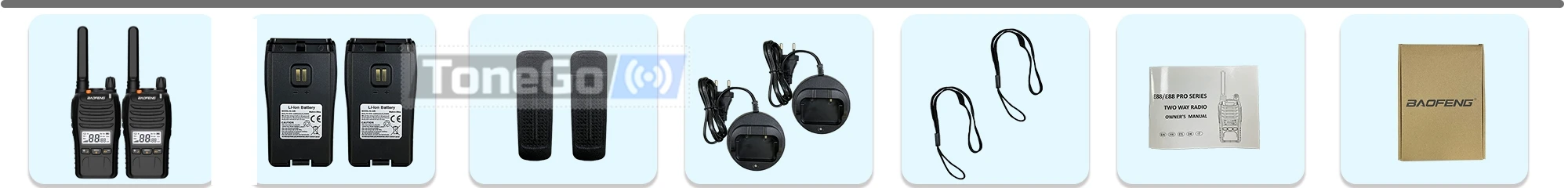

if you buy 2pcs,you can get
2 X Radio
2 X Li-ion battery
2 X Belt clip
2 X Sling
2 X Charger
1 X Manual
1 X Box
or

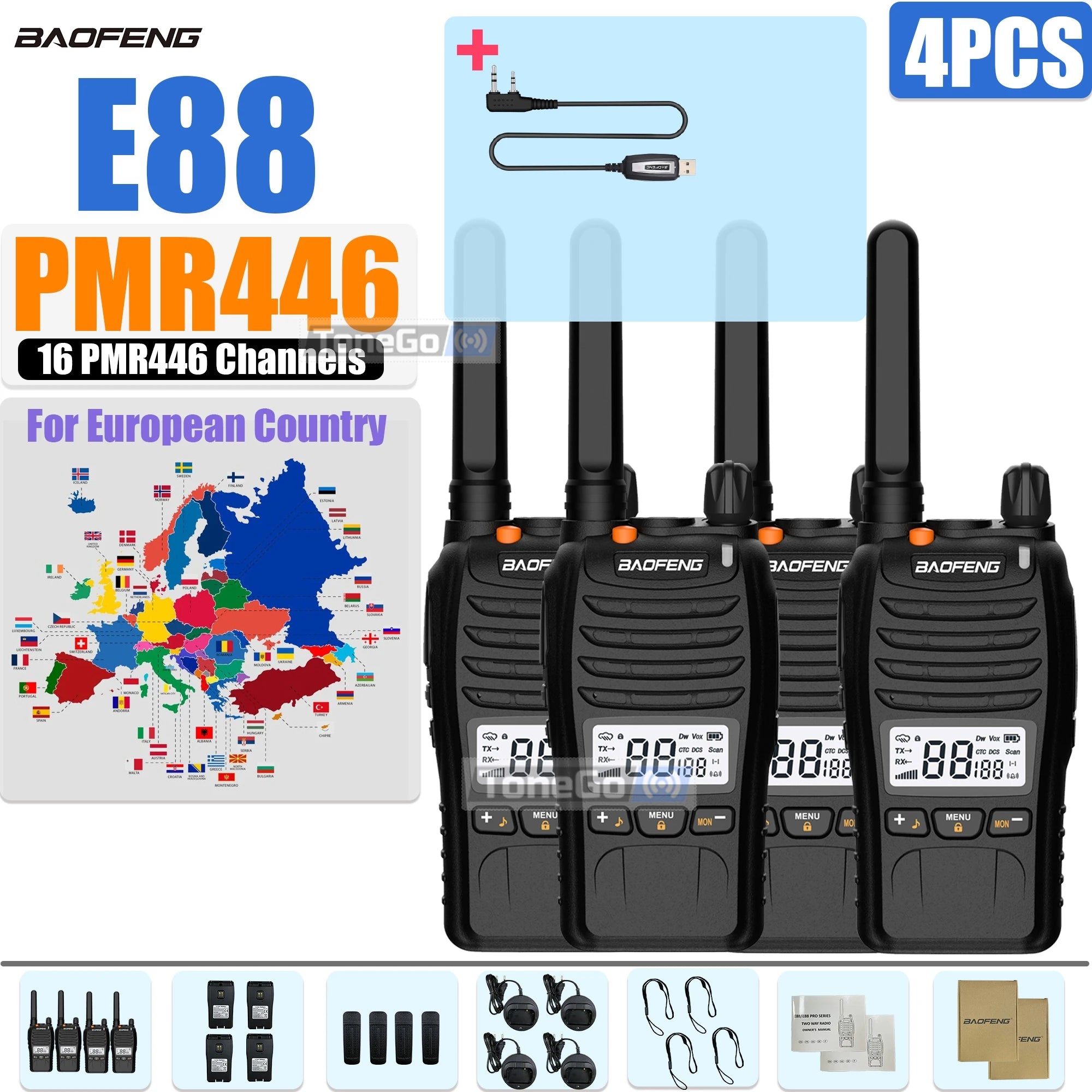

if you buy 4pcs,you can get
4 X Radio
4 X Li-ion battery
4 X Belt clip
4 X Sling
4 X Charger
2 X Manual
2 X Box
Notice:We will ship according the option you choose.
